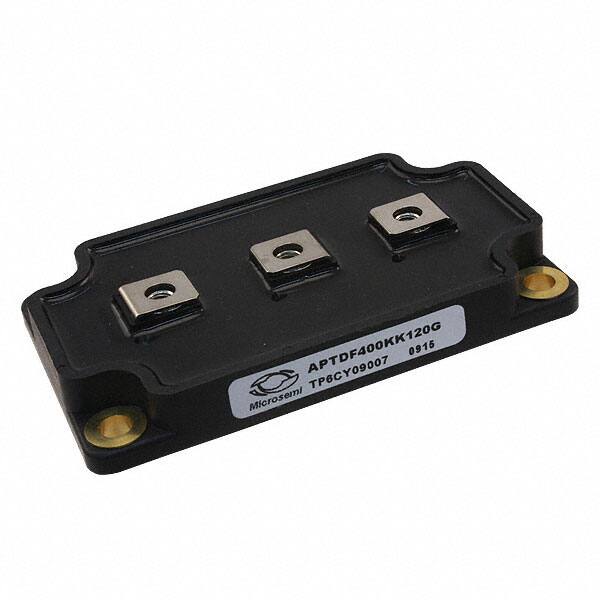

Lifecycle Status

IN PRODUCTION (Last Updated: 1 month ago)

Factory Lead Time

36 Weeks

Mount

Chassis Mount, Screw

Mounting Type

Chassis Mount

Package / Case

LP4

Number of Pins

4

Diode Element Material

SILICON

Number of Elements

2

Packaging

Bulk

Published

2009

JESD-609 Code

e1

Pbfree Code

yes

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

3

ECCN Code

EAR99

Terminal Finish

TIN SILVER COPPER

Max Operating Temperature

175°C

Min Operating Temperature

-40°C

Applications

ULTRA FAST SOFT RECOVERY POWER

Terminal Position

UPPER

Terminal Form

UNSPECIFIED

Pin Count

3

JESD-30 Code

R-XUFM-X3

Element Configuration

Common Cathode

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Diode Type

Standard

Current - Reverse Leakage @ Vr

250μA @ 1200V

Voltage - Forward (Vf) (Max) @ If

3V @ 400A

Case Connection

ISOLATED

Forward Current

470A

Voltage - DC Reverse (Vr) (Max)

1200V

Forward Voltage

3V

Max Reverse Voltage (DC)

1.2kV

Average Rectified Current

470A

Number of Phases

1

Reverse Recovery Time

385 ns

Peak Reverse Current

250μA

Max Repetitive Reverse Voltage (Vrrm)

1.2kV

Peak Non-Repetitive Surge Current

3kA

Diode Configuration

1 Pair Common Cathode

Radiation Hardening

No

RoHS Status

RoHS Compliant
